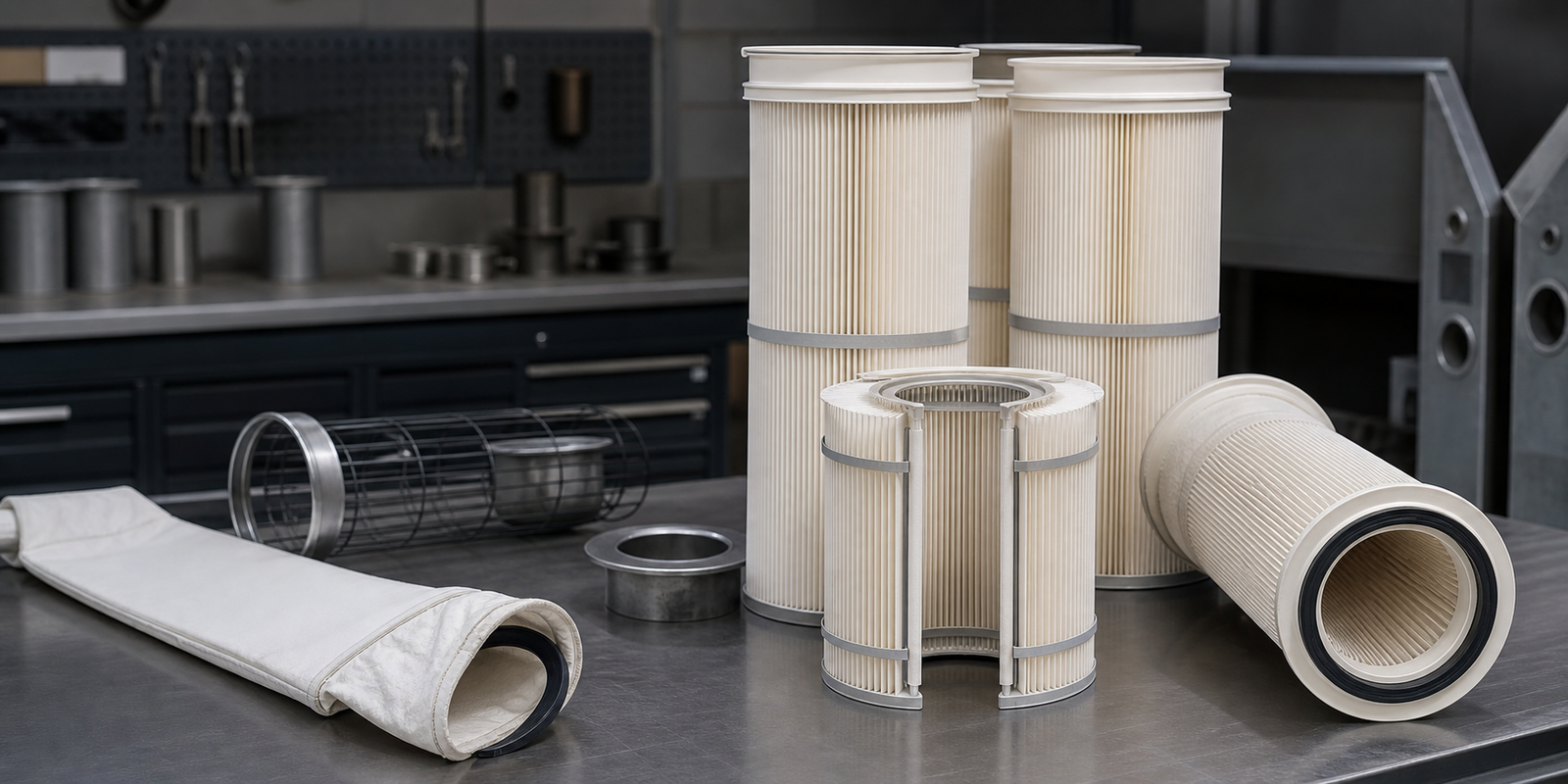

Pleated filter bags for baghouse retrofit and higher media area.
Custom pleated filter bags for pulse jet baghouses and dust collector retrofit projects. Increase effective filtration area, improve dust release, reduce pressure-drop risk and simplify changeouts without replacing the complete collector.
Product Range
Pleated filter bags built for retrofit, airflow optimization and easier baghouse maintenance.
Use this page to compare pleated bag fitment, media, sealing design and operating-condition details before sending a retrofit RFQ.
Top Load Pleated Bags
Designed for clean-side access baghouses where filters are installed and removed from the top.
Quote top load bagsBottom Load Pleated Bags
For bottom access collectors where sealing, length and handling clearance must be reviewed carefully.
Send bottom load specsOval Pleated Bags
Custom oval or special-section pleated bags for selected retrofit and OEM-style replacement projects.
Check measuring guideSnap Band Pleated Bags
Snap band and gasketed top styles for tube sheet sealing in pulse jet baghouse systems.
Quote snap band styleMore Media in the Same Footprint
The pleated structure increases effective filtration area within the same collector envelope, helping reduce air-to-cloth loading in selected applications.
No Full Collector Replacement
Pleated bags can be used as a retrofit option when the existing baghouse is limited by filter area, pressure drop or maintenance time.
Shorter & Easier to Handle
Many pleated bag designs are shorter than conventional bags, reducing contact with abrasive inlet dust and making changeouts easier.
Use pleated bags when the collector needs more filtration area without major equipment changes.
A pleated filter bag is not just a folded version of a standard felt bag. It must match airflow, dust loading, pulse cleaning, tube sheet fit and available installation clearance.
- Common Goalslower pressure drop, longer service interval, easier changeout
- Collector Typemainly pulse jet baghouses and retrofit systems
- Installationtop load, bottom load, oval or round configurations
- Replacement Methodby old size, sample, drawing, part number or photos
- Engineering Checkairflow, dust type, pulse energy and sealing style
Tube Sheet Fit
Confirm cell plate hole diameter, gasket compression and snap band or molded top dimensions before production.
Built-in Core / Cage Review
Some pleated bags replace both bag and cage, while other designs require support. Always confirm the structure.
Pleat Pack Clearance
Review pleat depth, pleat count, dust release space and distance from inlet gas stream.
Spunbond Polyester
Durable pleatable media for common dry dust applications where temperature and chemistry are moderate.
PTFE Membrane
Surface filtration option for improved cake release, fine dust capture and selected moisture-sensitive processes.
PPS / Aramid / Conductive
Used after reviewing temperature, chemical exposure, static risk and dust combustibility considerations.
Pleated bags are powerful, but not automatically correct for every baghouse.
A serious product page should explain limitations. This reduces poor-fit inquiries and builds engineering trust.
- Heavy Sticky Dustmay blind pleats if dust cannot release
- High Moisturerequires media and coating review
- Very High Temperaturerequires aramid, PPS or special review
- Weak Pulse Cleaningmay need valve, air pressure or nozzle review
- Bottom Entry Limitsupward velocity and dropout zone must be checked
Media Selection
Select pleated bag media by dust type, temperature, moisture and emission target.
Pleated media must balance filtration efficiency, pleat stability, fatigue resistance and cake-release behavior. The wrong media can shorten service life even if the size is correct.
| Media / Finish | Best For | Typical Advantages | RFQ Notes |
|---|---|---|---|
| Spunbond PolyesterGeneral pleated bag media | Woodworking, powder processing, general dry dust | Durable pleat structure, good cleanability and practical cost | — send diameter, length and top style |
| PTFE MembraneSurface filtration layer | Fine dust, sticky dust, low-emission requirements | Improved surface loading, cake release and fine-particle capture | — confirm moisture and dust behavior |
| Oleophobic / Hydrophobic FinishOil and moisture resistance | Humid or oily dust conditions | Helps reduce blinding risk in selected applications | — send humidity and dust details |
| Conductive / Anti-static MediaStatic-sensitive dust | Plastic powder, wood dust and selected combustible dust processes | Helps address static accumulation when properly grounded and applied | — review system safety requirements |
| Aramid Pleated MediaHigh-temperature dry process | Asphalt, cement and elevated-temperature applications | Better heat resistance than standard polyester options | — confirm continuous and peak temperature |
| PPS Pleated MediaChemical / flue gas conditions | Boiler, chemical, power and selected corrosive gas environments | Used where chemical resistance and temperature performance are required | — gas composition review recommended |
Retrofit Workflow
From standard filter bags to confirmed pleated bag replacement.
A good pleated bag RFQ should confirm more than diameter and length. It should review fitment, airflow, dust behavior, sealing method and cleaning performance.
Check Collector
Confirm pulse jet type, top/bottom access, tube sheet and available filter length.
Measure Old Filter
Send diameter, length, top style, bottom style, photos and old part number.
Review Dust
Share dust type, moisture, temperature, abrasion and pressure drop history.
Select Media
Choose polyester, PTFE membrane, conductive, aramid or PPS after condition review.
Quote & Sample
Confirm quantity, packing, sample, label and production lead time.

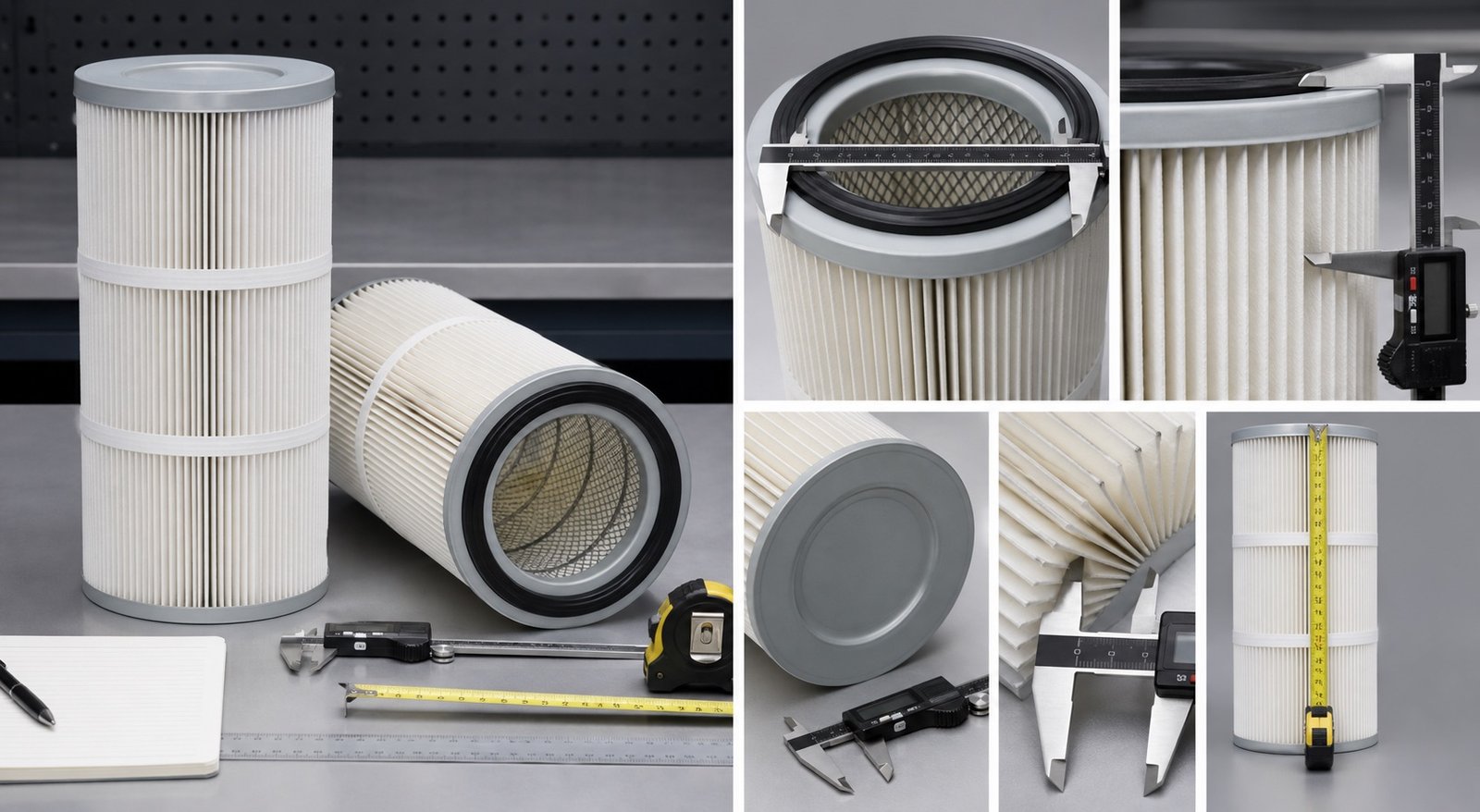

How to Measure
Measure the old filter before requesting a pleated bag retrofit quote.
Many buyers have old collectors with unclear model numbers. A clear measurement block turns uncertain traffic into qualified pleated bag RFQs.
Best RFQs include outside diameter, overall length, top style, bottom style, pleat depth, media, dust type, temperature and old-filter photos.
Standard vs Pleated
Compare standard bag-and-cage sets with pleated replacements.
Pleated bags can increase filter area and simplify changeouts, but fitment, cleaning energy, dust release and temperature still need to be reviewed before conversion.
| Decision Point | Standard Filter Bag + Cage | Pleated Filter Bag | What to Confirm |
|---|---|---|---|
| Filtration Area | Limited by bag diameter and length | Pleated media increases effective area in the same footprint | Media area, pleat depth and air-to-cloth target |
| Installation Labor | Bag and cage handled separately | May replace bag and cage as a single assembly depending on design | Top/bottom access and sealing design |
| Abrasion Risk | Long bags may sit closer to inlet abrasion zone | Shorter designs may create more drop-out space below filters | Inlet position, dust velocity and bag length |
| Pressure Drop | Can rise when filter area is insufficient or dust cake is hard to release | More area may reduce loading and cleaning frequency in suitable cases | Airflow, dust loading and pulse cleaning condition |
| Best Fit | General baghouse replacement and high-temperature felt applications | Retrofit, maintenance reduction and filtration-area constraints | Temperature, moisture, chemistry and dust stickiness |
Industry Applications
Pleated filter bags for dust collectors across demanding industrial applications.
Each industry has different dust release, temperature, abrasion and emission requirements. Share dust details and existing filter photos for a better media recommendation.
Common Problems
Common problems that point to a pleated retrofit review.
Quality Control
Quality checks before packing and repeat orders.
- Media Verificationmaterial, coating, finish and weight
- Pleat Geometry Checkpleat depth, count, spacing and stability
- Dimension CheckOD, length, cap, gasket and tube sheet fit
- Sealing Inspectionsnap band, gasket, molded top or flange
- Fit Confirmationcollector model, access direction and old filter match
- Export Packingcarton, pallet, label and private label support
Request a Quote
Send your pleated bag specs for engineering review.
For retrofit projects, photos of the old filter, tube sheet, collector access direction and dust condition are often enough for initial review. Samples or drawings are recommended for special constructions.
- Custom by diameter, length, media, gasket and top/bottom style
- Retrofit review for standard filter bag and cage replacement
- Media recommendation based on dust, temperature and moisture
- Sample order, distributor packing and private label options
FAQ
Pleated filter bag FAQ for retrofit purchasing.
What are pleated filter bags?
Pleated filter bags are dust collector replacement filters using pleated media to increase effective filtration area inside a baghouse. Depending on the design, they may replace a traditional filter bag and cage or require a compatible support structure.
Can pleated filter bags replace standard filter bags and cages?
In many pulse jet baghouses, yes. However, the replacement must be checked by tube sheet size, access direction, sealing style, available length, pulse cleaning design and dust condition.
What information do you need to quote pleated filter bags?
Send outside diameter, overall length, top style, bottom style, media if known, dust type, temperature, quantity, old filter photos, drawing, sample or OEM-style part number.
Which media is best for pleated bags?
Spunbond polyester is common for general dry dust. PTFE membrane, oleophobic/hydrophobic finish, conductive media, aramid and PPS may be selected after reviewing dust, moisture, temperature and chemical exposure.
Are pleated bags always better than standard filter bags?
No. Pleated bags are strong retrofit options when more filtration area, lower pressure drop, easier changeout or abrasion reduction is needed. Sticky dust, high moisture, high temperature or weak pulse cleaning may require special review.
Can you make OEM-style pleated bag replacements?
Yes. We can review old filters by photos, dimensions, samples, drawings or part numbers for identification and cross-reference purposes. Brand names should be used only for identification.
Can I order a sample before mass production?
Yes. Samples are recommended for first-time retrofit projects, special top/bottom structures, private label packaging or when the old filter specification is uncertain.
